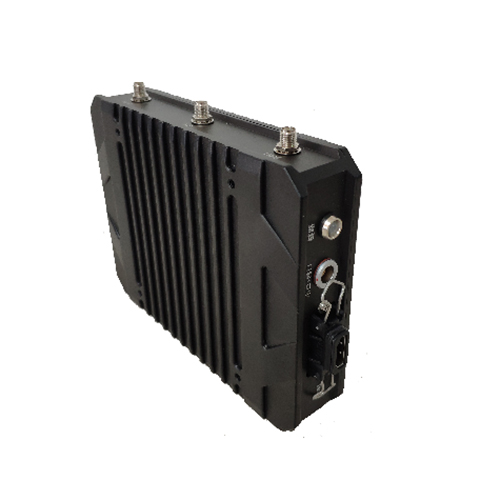

Ubinode HT Tactical Broadband Wireless Ad Hoc Network Equipment

Ubinode-HT (piggyback) is a backpack, high-throughput wireless broadband MESH device launched by Shenzhen TD Tech. The equipment is developed based on COFDM technology and MESH multi-hop ad hoc network technology, and realizes the free networking of different product forms, which can quickly build reliable wireless links for users in complex environments and meet various business requirements (such as: HD Video, voice intercom and IP data transmission, etc.) provide fast and flexible solutions. The application fields of this equipment include: UAV aerial photography, public security, armed police, fire fighting, disaster relief and other emergency communication systems; fleet, electric power, water conservancy, waterway, border and coastal defense monitoring and other fields.​


Transmission characteristics​
Frequency Range
200MHz~1.5GHz (customizable)​
Channel bandwidth
5/10/20MHz (adjustable)​
Transmit power
1W/2W (adjustable power)
Modulation
COFDM
Constellation modulation

BPSK/QPSK/16QAM/64QAM(adaptive)

Forward error correction code
1/2,2/3,3/4,5/6(optional)


Receiving sensitivity
-93dBm@5MHz
Transmission rate
Peak70Mbps@20MHz
Transmission distance
Support 20km (line of sight)
Networking capability
Support 32 nodes
Electrical characteristics
Operating Voltage
DC12V
Working current
≤2A
Power consumption
≤24W@1W Tx Power
Data characteristics
Video input method
HDMI video input (customizable)
IP video input: 1080P network camera
Audio input method
MIC
Audio output method

Head Phone or PTT microphone

External interface
Wi-Fi/GPS/Beidou/3G/4G network card
Encryption
AES128 or customized
Physical properties
Protection level
IP65
Operating temperature
-20℃ ~ +55℃
Storage temperature
-40℃ ~ +80℃
Dimensions
200×165×47mm
equipment weight
The whole machine is about 1.9Kg (including battery)
