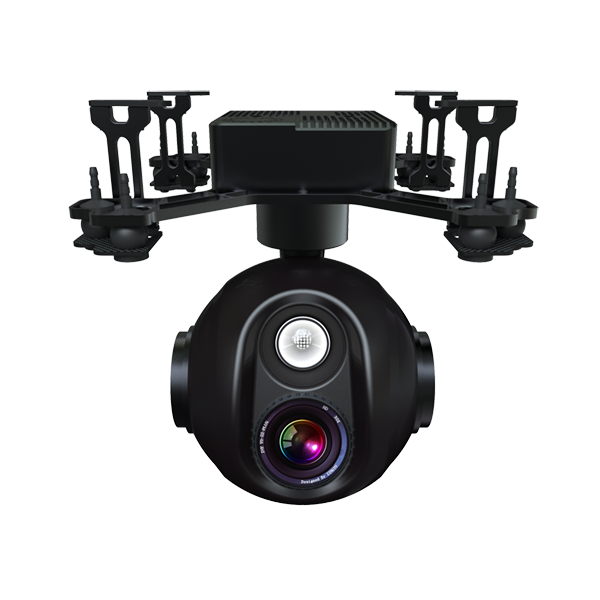

Double lightpod

pod parameters

The whole machine

Material

Aviation aluminum alloy, nylon

Size

178(Long)×178(wide)×1< /span>56(Height)mm

Weight

1050g

Working temperature

﹣5°～45°

image stabilization axis

Three-axis

inputinputVoltage

4S～6S (14.8～22.2V)

Control angle range

﹣40°～40°(roller); ﹣120°～30°(pitch);   ﹣170°～170° (Direction)

Control precision

0.03°

Control signal

SBus

Output interface

AV analog output, micoHDMI HD output< /span>

Storage device

TF card×2 (white light and infrared video are stored separately)

Mode

Lock the direction and follow the course; the camera is facing down

Camera

like the number

640×480

pixel spacing

17μm

Type

Uncooled focal plane microbolometer

Wavelength range

8～14μm

Heat Sensitive (NETD)

≤65mk@30℃

Lens focal length

19mm

Field of View

32.0x24.2°

Image output time

≤5s

Image noise reduction

Digital Filtering

Electronic zoom

2 times, 4 times, 8 times, 16 times magnification

Frame rate

50Hz

Palette

support pseudo-color switching

Extensible temperature measurement function

Center point, maximum temperature and minimum temperature display temperature function; over-temperature alarm

Static working current

0.2A

Dynamic working current

0.2-0.5A
